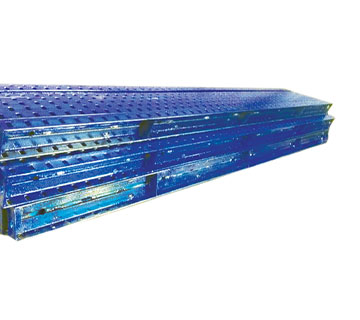

The Soldiers are used for heavy duty concrete wall forming. The length of soldiers are 2.5 m & made up of 50X50X6 mm M S slotted angles & M S sheet of 3 mm to make them strong & tied together to form parallel faces. The panels are joined by wedge sets which are inserted through slots in the punched flat which forms the edge of the panel.
Material Grade : MS Sheet 4 mm Thick
Thickness : 4 mm MS Sheet
Size in (mm) | Weight in Kgs. |
---|---|
1250 x 200 | 14.30 |
1250 x 230 | 15.25 |
1250 x 300 | 19.00 |
1250 x 350 | 22.00 |
1250 x 400 | 24.00 |
1250 x 450 | 25.25 |
1250 x 500 | 27.00 |
1250 x 600 | 34.00 |
1250 x 750 | 40.00 |
