H Frame Scaffolding
Consists of rigid welded frames of two verticals and two horizontals. The frames are interconnected by scissor cross braces in all bays or alternate bays (for top 20 Meters) of scaffolding through pins welded on frames and locked in position by spring clips. Shree Om Scaffolding provides Most Popular scaffolding frame Set / H Frame use in Plastering, Masonry, and General Construction. This type of Scaffolding system is used whenever the situation arises where large Heights are to be scaled. The H-Frames are created in the Safeway style, which makes them compatible with fame scaffolding as well. This frames are manufactured from the highest quality MS Pipes.

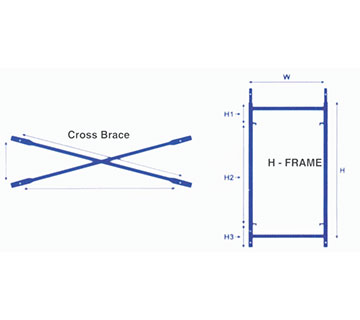

Cross Bracing
In construction, cross bracing is a system utilized to reinforce building structures in which diagonal supports intersect. Cross bracing is usually seen with two diagonal supports placed in an X-shaped manner. Cross Bracings are crucial for the H-Frames as they can add immense strength and stability for these systems, especially when placed at distances of 2.5, 2.0, 1.5 and 1.0 meter. The cross bracings can also be customized according to the height which needs to be scaled. Using the cross bracings as a part of the H-Frames is especially useful as far as utilizing them for the purpose of support staging and access scaffolding is concerned.
Sizes in mm: 30 x 30 x 4 | 34 x 34 x 4 | 37 x 37 x 3
SIZES OF “H” FRAMES
| SIZE (H X W) | WEIGHT |
|---|---|
| 1.50 x 1.00 mtr. | 20.00 kg / Nos. |
| 1.50 x 1.25 mtr. | 21.50 kg. / Nos. |
| 2.00 x 1.00 mtr. | 24.00 kg. / Nos. |
| 2.00 x 1.25 mtr. | 25.50 kg / Nos. |
