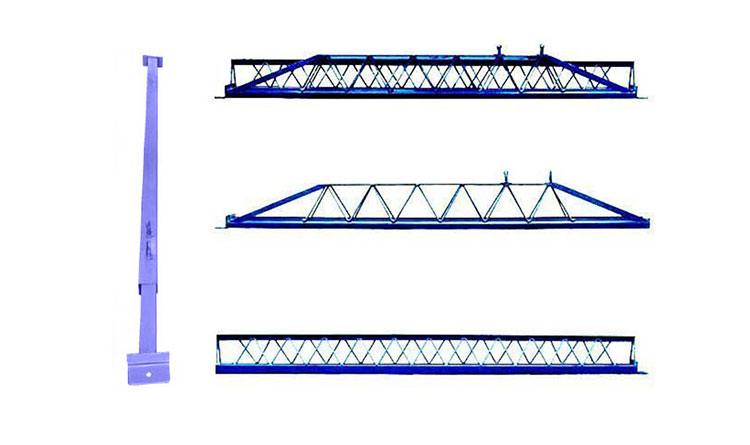

Adjustable Acro Span

Having exceptionally high load bearing capacity for its low weight. Completely eliminates intermediate propping to support shuttering plate. Hence, reducing maintenance cost as well as time for easy erection. Adjustable Telescopic Spans are easy method for slab supporting most economical and convenient product. It is ideal to be used as self-supporting runner in shuttering systems. Moreover, Adjustable beam spans are installed under shuttering plats or floor from panels. Adjustable telescopic span is made out of 2 mm Thick MS Sheet with support of ΓΈ10 mm Bar and 40x40x5 mm MS T. The perfect Adjustable Telescopic spans are manufactured using high quality machines and well equipped testing equipment installed in our workshop.

Acro span have a standardized size i.e. 2.35 x 3.45 mtrs., 2.4 x 4.1 mtrs., 2.5 x 2.5 mtrs.

Features

  • Portable.
  • Highly Accurate and precise.
  • Easy handling.
  • Installation is easy.
  • High load bearing capacity.
  • Used for supporting beam bottoms and cantering sheet.
  • The adjustable span is assembled with an outer sliding and one inner sliding, in order to provide variable lengths to the span and lock in different positions.
  • A self-cleaning device on the collar nut automatically clears the thread of concrete and dirt where the nut is rotated thus assuring quick and easy adjustment.
  • Spans are considered an integral structural construction scaffolding components of a construction scaffold and provide support to the entire structure.
  • As per the need they can be adjusted and are extensively used to support floor forms during lying of slabs.

Box Type Mini Span

Box type mini Span is alternative method of telescopic span for slab supporting. It is made of MS Square pipe 65x65 mm 72x72 mm.

Available Size: 2 x 2 mtrs., - 26 Kg | 2 x 2.5 mtrs. - 29 Kgs.
